Infant Incubator
Overview

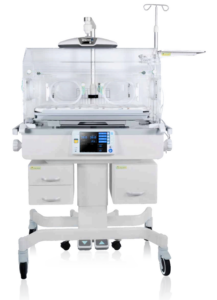

The AG-II-3000 infant incubator adopts a reliable heat source dual protection design, equipped with a thermocouple and a mechanical temperature switch to protect the heat source of the heating system and evaporator.
The air circuit system is designed based on extensive experiments. With rich aerodynamic knowledge, we can improve the temperature uniformity as much as possible and give the baby the safest micro-environment.
Features
- Two control modes: Air mode and Baby mode controlled by micro-computer;
- 8 inch LCD screen;
- 1500ml water reservior;
- Three auxiliary power output;
- Humidity and oxygen concentration level display and servo control system;
- The air circulation system with outlet in both front and back with air curtain;
- X-ray cassette under the bassinet;
- Embedded integrated sensor module, integrated water reservoir in the shape of drawer;
- Bed tilting adjustable;
- Height adjustment;
- Weight scale;
- Spo2 function;
- Multiple failure alarm indications, around 35 kinds of different alarms ;
Technical Parameters
| Servo Humidity Control | |
| Humiditycontrol range | 30%~95% RH |
| Humidity control operating time without refilling | 24 hours, support add water anytime |
| midtycontrol reservoircapacity | 1500ml |
| Humiditydisplayand control accuracy | ±5%RH |
| Servo Oxygen Control Option | |
| Oxygen control range | 21 % to 65% |
| Oxygen display accuracy of full scale | ±2% |
| Oxygen control accuracy (100% calibration) | ± 3% |
| Oxygen control accuracy(21% calibration) | ±5% |
| Oxygen display res olution | 1% |
| Weight Scale Option | |
| Weight range | 300 gto 8 kg |
| Weight display resolution | 1 g |
| Weight accuracy | ±10g |
| Operating environment | 20° to 30°℃ |
| Temperature | 10 to 95% RH |
| rVelocity | Up to 0.3 m/sec |
| Storage/Shipping Information | |
| Temperature | 25° to 60°℃ |
| Humidity | 0 to 95% RH |
| Net Weight | 90kg |
| Alarmssilence | Hand free |
| Height adjustment | Up to 30cm |
| Weight Scale | |
| Weightrange | 300 g to 8000 g |
| Weight display resolution | 1g |
| Weight accuracy | ±10g |
| X-ray Cassette | |
| Dimension | 33*35cm |
| Drawer | |
| Weight limit | 5kg |
| Pulse Oximeter Unit | |
| Display range | 1~100% SpO2 |
| Displayaccuracy | ±2%(70~99%) |
| Pulseratedisplay range | 30~240bpm |
| Pulse rate dis play acuracy | 1%+1bpm |
| Resuscitation | |
| Manometer | Pressure indication: -2~10KPa(-20~100cmH2O) |
| Resusci-flow unit | PMAX setting range:≤6KPa (60cmH2O) |
| ‘ Suction Unit | |
| Negativepressurerange | Suction pressure control range:-24~0 KPa(-180~0 mmHg) |
| Air pumpingefficiency | 0~15L/min |
| Storage/Shipping Information | |
| Temperature | -25°~60℃ |
| Humidity | 0~95% RH |
